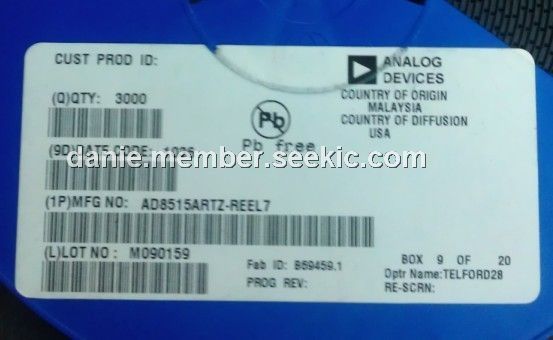

AD8515ARTZ-REEL7

rail-to-rail amplifier, SOT23-5, 6 V, Single-supply operation, 5 MHz Bandwidth

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.22~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.22~1.00

PartNumber:: AD8515ARTZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:AD8515ARTZ-REEL7
US $0.22 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8515ARTZ-REEL7 is a rail-to-rail amplifier that can operate from a single-supply voltage as low as 1.8 V. The AD8515ARTZ-REEL7 single amplifier, available in 5-lead SOT-23 and 5-lead SC70 packages, is small enough to be placed next to sensors, reducing external noise pickup. The applications of the AD8515ARTZ-REEL7 include Portable communications, Portable phones, Sensor interfaces, Laser scanners, PCMCIA cards, Battery-powered devices, New generation phones and Personal digital assistants.

Parametrics

AD8515ARTZ-REEL7 absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V or ±VS; (4)Output Short-Circuit Duration to GND: Observe derating curves; (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +125℃; (7)Junction Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 60 sec): 300℃.

Features

AD8515ARTZ-REEL7 features: (1)Single-supply operation: 1.8 V to 5 V; (2)Offset voltage: 6 mV maximum; (3)Space-saving SOT-23 and SC70 packages; (4)Slew rate: 2.7 V/μs; (5)Bandwidth: 5 MHz; (6)Rail-to-rail input and output swing; (7)Low input bias current: 2 pA typical; (8)Low supply current at 1.8 V: 450 μA maximum.
