Product Summary
The BFR93A is a NPN wideband transistor in a plastic SOT23 package. It is suitable for RF wideband amplifiers and oscillators.
Parametrics
BFR93A absolute maximum ratings: (1)VCBO, collector-base voltage open emitter:15 V; (2)VCEO, collector-emitter voltage open base: 12 V; (3)VEBO, emitter-base voltage open collector: 2V; (4)IC, collector current (DC): 35 mA; (5)Ptot, total power dissipation Ts: 300 mW; (6)Tstg, storage temperature: -65 +150℃; (7)Tj, junction temperature: +175℃.
Features
BFR93A features: (1)High power gain; (2)Low noise figure; (3)Very low intermodulation distortion.

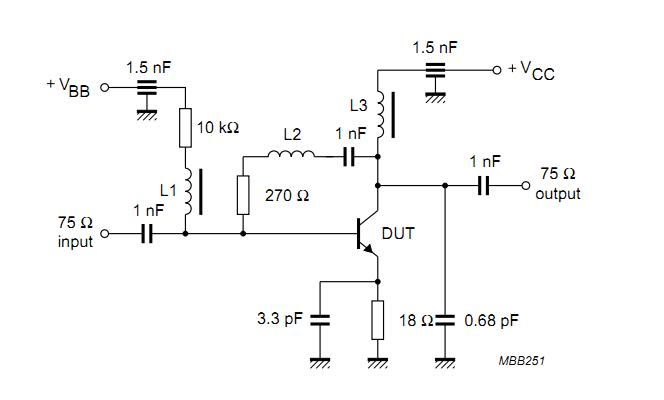

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BFR93A,215 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal NPN 35MA 12V 6GHZ |
Data Sheet |
|
|
||||||||||||
|
BFR93A,235 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal Single NPN 12V 35mA 300mW 40 6GHz |
Data Sheet |
|
|
||||||||||||
 |
BFR93AR |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR93AR T/R |
NXP Semiconductors |
Transistors RF Bipolar Small Signal TAPE7 TNS-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR93AT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR93AW |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR93AW T/R |
NXP Semiconductors |
Transistors RF Bipolar Small Signal TAPE-7 TNS-RFSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
BFR93AW,115 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal TAPE-7 TNS-RFSS |
Data Sheet |
|
|
||||||||||||
