Product Summary

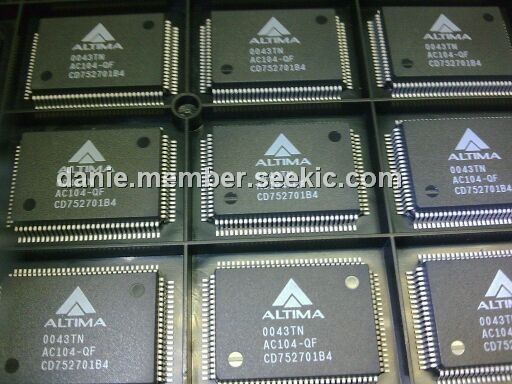

The AC104-QF is a highly integrated, 3.3V, low power, four port, 10Base-T/100Base-TX/FX, Ethernet transceiver implemented in 0.35mm CMOS technology. Multiple modes of operation including normal operation, test mode and power saving mode are available through either hardware or software control.
Parametrics
AC104-QF absolute maximum ratings: (1)Storage Temperature:-55 to +150℃; (2)Vcc Supply Referenced to GND:-0.5V to +5.0V ; (3)Digital Input Voltage:-0.5V to Vcc ; (4)DC Output Voltage:-0.5V to Vcc.
Features
AC104-QF features: (1)Baseline Wander Compensation ; (2)Multi-Function LED outputs ; (3)Cable length indicator ; (4)Reverse polarity detection and correction with Register Bit indication – Automatic or Forced ; (5)8 programmable interrupts ; (6)Diagnostic registers.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AC104-QF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
