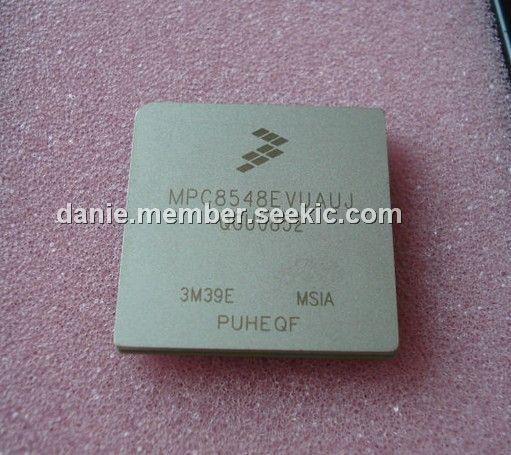

MPC8548EVUAUJ

Serializer/Deserializer (SerDes) interface, PCI Express, serial RapidIO data transfers

Rated 5 Rating 5 | reviews | Write a review

Price:: US $35.00~80.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $35.00~80.00

PartNumber:: MPC8548EVUAUJ

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:MPC8548EVUAUJ
US $35.00 - 80.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MPC8548EVUAUJ features one Serializer/Deserializer (SerDes) interface to be used for high-speed serial interconnect applications. The SerDes interface can be used for PCI Express and/or serial RapidIO data transfers. This section describes the common portion of SerDes DC electrical specifications, which is the DC requirement for SerDes reference clocks. The SerDes data lane’s transmitter and receiver reference circuits are also shown. This section MPC8548EVUAUJ provides the AC and DC electrical specifications and thermal characteristics for the MPC8548E. This device MPC8548EVUAUJ is currently targeted to these specifications. Some of these specifications are independent of the I/O cell, but are included for a more complete reference. These are not purely I/O buffer design specifications.

Parametrics

MPC8548EVUAUJ absolute maximum ratings:(1)Core supply voltage, VDD: –0.3 to 1.21V; (2)PLL supply voltage, AVDD: –0.3 to 1.21V; (3)Core power supply for SerDes transceivers, SVDD –0.3 to 1.21V; (4)Pad power supply for SerDes transceivers, XVDD –0.3 to 1.21V; (5)DDR and DDR2 DRAM I/O voltage, GVDD: –0.3 to 2.75V; (6)PCI/PCI-X, DUART, system control and power management, I2C, Ethernet MII management, and JTAG I/O voltage, OVDD: –0.3 to 3.63V; (7)Local bus I/O voltage, BVDD: –0.3 to 3.63V; (8)DDR/DDR2 DRAM signals, MVIN: –0.3 to (GVDD + 0.3)V; (9)DDR/DDR2 DRAM reference, MVREF: –0.3 to (GVDD/2 + 0.3)V; (10)Three-speed Ethernet I/O signals, LVIN–0.3 to (LVDD + 0.3): 0.3 to (TVDD + 0.3); (11)Local bus signals, BVIN: –0.3 to (BVDD + 0.3); (12)DUART, SYSCLK, system control and power management, I2C, Ethernet MII management, and JTAG signals, OVIN: –0.3 to (OVDD + 0.3)V; (13)PCI/PCI-X, OVIN: –0.3 to (OVDD + 0.3)V.
