Product Summary
The XC4085XLA-09HQ240I is a field programmable gate array. The XC4085XLA-09HQ240I is improved versions of XC4000XL devices. The XC4085XLA-09HQ240I has the same features as XLA devices, incorporate additional interconnect resources and extend gate capacity to 500,000 system gates. The XC4085XLA-09HQ240I requires a separate 2.5V power supply for internal logic but maintain 5V I/O compatibility via a separate 3.3V I/O power supply.
Parametrics
XC4085XLA-09HQ240I absolute maximum ratings: (1)XLA Devices Require: 3.0 - 3.6 V (VCC); (2)XV Devices Require: 2.3- 2.7 V (VCCINT) and 3.0 - 3.6 V (VCCIO); (3)5.0 V TTL compatible I/O; (4)3.3 V LVTTL, LVCMOS compliant I/O; (5)5.0 V and 3.0 V PCI Compliant I/O; (6)12 mA or 24 mA Current Sink Capability; (7)Safe under All Power-up Sequences; (8)XLA Consumes 40% Less Power than XL; (9)XV Consumes 65% Less Power than XL; (10)Optional Input Clamping to VCC (XLA) or VCCIO (XV).
Features
XC4085XLA-09HQ240I features: (1)Footprint Compatible with XC4000XL FPGAs - Lower cost with improved performance and lower power; (2)Advanced Technology 5 layer metal, 0.25 mm CMOS process (XV) or 0.35 mm CMOS process (XLA); (3)Highest Performance System erformance beyond 100 MHz; (4)High Capacity Up to 500,000 system gates and 270,000 synchronous SRAM bits; (5)Low Power 3.3 V/2.5 V technology plus segmented routing architecture; (6)Safe and Easy to Use Interfaces to any combination of 3.3 V and 5.0 V TTL compatible devices.

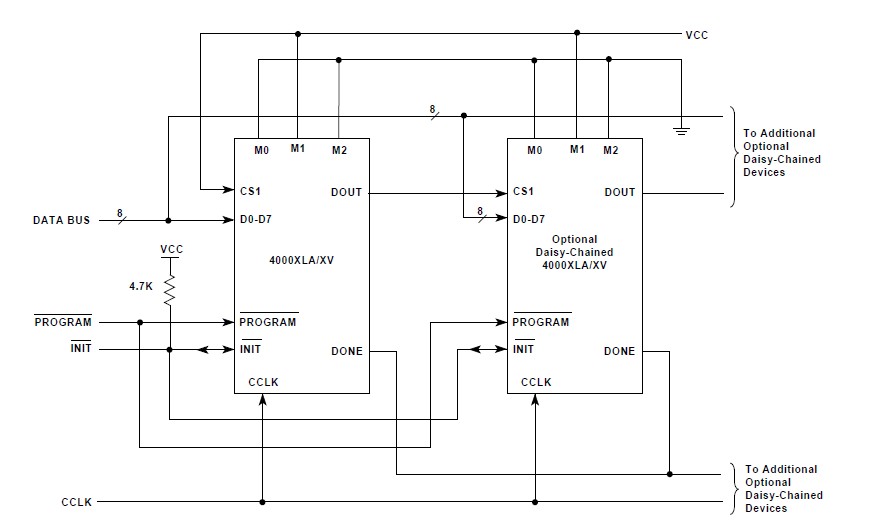

Diagrams
 |
