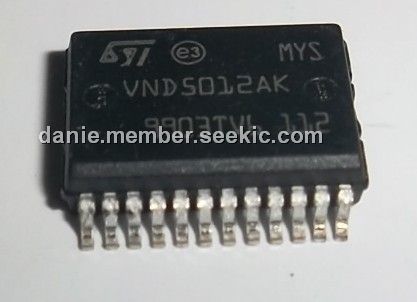

VN5012AK

Product Summary

The VN5012AK is a monolithic device made using STMicroelectronics VIPower M0-5 technology. It is intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table). This device VN5012AK integrates an analog current sense which delivers a current proportional to the load current (according to a known ratio) when CS_DIS is driven low or left open. When CS_DIS is driven high, the CURRENT SENSE pin is in a high impedance condition. Output current limitation protects the device in overload condition. In case of long overload duration, the VN5012AK limits the dissipated power to safe level up to thermal shut-down intervention. Thermal shut-down with automatic restart allows the device to recover normal operation as soon as fault condition disappears.

Parametrics

VN5012AK absolute maximum ratings: (1)VCC, DC supply voltage: 41 V; (2)-VCC, Reverse DC supply voltage: 0.3 V; (3)-IGND, DC reverse ground pin current: 200 mA; (4)IOUT, DC output current: Internally limited; (5)-IOUT, Reverse DC output current: -30 A; (6)IIN, DC input current: -1 to 10 mA; (7)ICSD, DC current sense disable input current: -1 to 10 mA; (8)-ICSENSE, DC reverse CS pin current: 200 mA; (9)VCSENSE, Current Sense maximum voltage: VCC-41V to +VCC.

Features

VN5012AK features: (1)Inrush current active management by power limitation; (2)Very low stand-by current; (3)3.0V CMOS compatible input; (4)Optimized electromagnetic emission; (5)Very low electromagnetic susceptibility; (6)In compliance with the 2002/95/EC; (7)Proportional load current sense; (8)High current sense precision for wide range currents; (9)Current sense disable; (10)Thermal shutdown indication; (11)Very low current sense leakage; (12)Undervoltage shut-down; (13)Overvoltage clamp; (14)Load current limitation; (15)Self limiting of fast thermal transients; (16)Protection against loss of ground and loss of VCC; (17)Thermal shut down; (18)Reverse battery protection.

Diagrams
