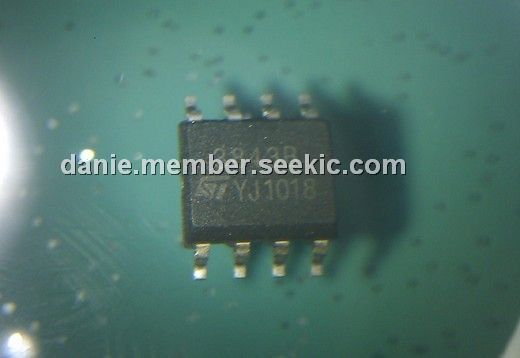

3843B

high-performance current-mode pwm controller, 6.3 V, 10 mA, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: 3843B

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-31

From Other Seller

Part Number:3843B
US $0.10 - 0.20
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 3843B is a high-performance current-mode pwm controller. The 3843B of control integrated circuits provide the features that are necessary to implement off-line or dc-to-dc fixed-frequency current-mode control schemes, with a minimum number of external components. Internally implemented circuits include an undervoltage lockout (UVLO) and a precision reference that is trimmed for accuracy at the error amplifier input. Other internal circuits include logic to ensure latched operation, a pulse-width modulation (PWM) comparator that also provides current-limit control, and a totem-pole output stage designed to source or sink high-peak current. The output stage, suitable for driving N-channel MOSFETs, is low when it is in the off state. The 3843B is pin compatible with the standard TL284x and TL384x with the following improvements. The start-up current is specified to be 0.5 mA (max), while the oscillator discharge current is trimmed to 8.3 mA (typ). In addition, during undervoltage lockout conditions, the output has a maximum saturation voltage of 1.2 V while sinking 10 mA (VCC = 5 V).

Parametrics

3843B absolute maximum ratings: (1)VI Analog input voltage range VFB and ISENSE: －0.3, 6.3 V; (2)ICC Supply current: 30 mA; (3)IO Output current: ±1 A; (4)IO(sink) Error amplifier output sink current: 10 mA; (5)VCC Supply voltage Low impedance source: 30V; (6)TJ Virtual junction temperature: 150 °C; (7)Tstg Storage temperature range: －65, 150 °C; (8)Tlead Lead temperature Soldering, 10 s: 300 °C.

Features

3843B features: (1) Low Start-Up Current (<0.5 mA); (2) Trimmed Oscillator Discharge Current; (3) Current Mode Operation to 500 kHz; (4) Automatic Feed-Forward Compensation; (5) Latching PWM for Cycle-by-Cycle Current Limiting; (6) Internally Trimmed Reference With Undervoltage Lockout; (7) High-Current Totem-Pole Output Undervoltage Lockout With Hysteresis; (8) Double-Pulse Suppression.
