Product Summary
The HMC226ETR is a low-cost SPDT switch in 6-lead SOT26 packages for use in transmit-receive applications which require very low distortion at high signal power levels. The HMC226ETR can control signals from DC to 2.0 GHz and is especially suited for 450 MHz, 900 MHz, and 1.8 - 2 GHz applications with 0.5 to 0.8 dB loss. The HMC226ETR design provides excep-tional P1dB and intermodulation performance; a +35 dBm 1dB compression point and +55 dBm third order intercept at +3 volt bias. RF1 and RF2 are rel ective opens when Off. On-chip circuitry allows single positive supply operation at very low DC current with control inputs compatible with CMOS and most TTL logic families.
Parametrics
HMC226ETR absolute maximum ratings: (1)Control Voltage Range (A & B): -0.2 to +12 Vdc; (2)Storage Temperature: -65 to +150℃; (3)Operating Temperature: -40 to +85℃; (4)ESD Sensitivity (HBM): Class 1A.
Features
HMC226ETR features: (1)Low Insertion Loss: 0.6 dB; (2)Ultra Small Package: SOT26; (3)High Input P1dB: +35 to +38 dBm; (4)High Input IP3: +55 to +61 dBm; (5)Positive Control: 0/+3V to 0/+8V; (6)Included in the HMC-DK005 Designer’s Kit.

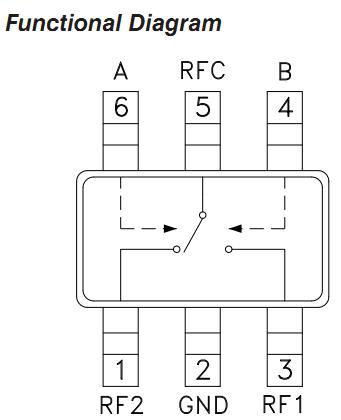

Diagrams
 |
