Product Summary
The AWT6108M10P8 is a quad band power amplifier module. It is designed to support dual, tri and quad band applications. The AWT6108M10P8 includes an integrated power control scheme that facilitates fast and easy production calibration and reduces the number of external components required to complete a power control function. The applications of the AWT6108M10P8 include: GSM850/GSM900/DCS/PCS handsets, dual/tri/quad band PDA.
Parametrics
AWT6108M10P8 absolute maximum ratings: (1)Supply voltage(VBATT): 0 to 7V; (2)RF input power(RFIN): 0 to 11dBm; (3)Control voltage(VRAMP): -0.3 to 1.8V; (4)Storage temperature(TSTG): -55 to 150℃.
Features
AWT6108M10P8 features: (1)InGaP HBT technology; (2)Integrated power control(CMOS); (3)Quad band applications; (4)+35dBm GSM output power at 3.5V; (5)+33dBm DCS/PCS output power at 3.5V; (6)55% GSM PAE; (7)50% DCS/PCS PAE; (8)Small footprint: 7×10mm; (9)Low profile: 1.4mm; (10)Power control range: >50dB; (11)GPRS capable.

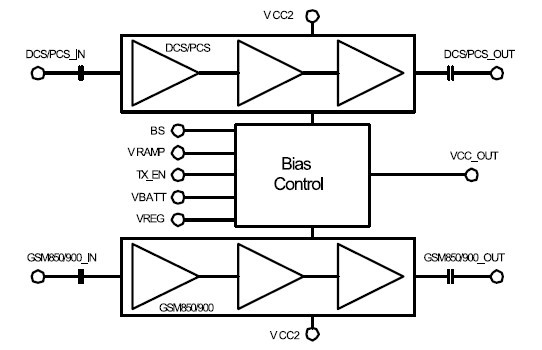

Diagrams
 |
