Product Summary

The HD63B21FP is a peripheral interface adapter which provides the universal means of interfacing peripheral equipment to the HD6800 microprocessing unit (MPU). This HD63B21FP is capable of interfacing the MPU to peripherals through two 8-bit bidirectional peripheral data buses and four control lines. No external logic is required for interfacing to most peripheral devices.

Parametrics

HD63B21FP absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)input voltage: -0.3 to +7.0 V; (3)maximum output current: 10 mA; (4)maximum total output current: 100 mA; (5)operating temperature: -20 to +75 ℃; (6)storage temperature: -55 to +150 ℃.

Features

HD63B21FP features: (1)two bidirectional 8-bit peripheral data bus for interface to peripheral devices; (2)two programmable control, data direction registers; (3)four individually controller interrupt input lines, two usable peripheral control outputs; (4)handshake control logic for input and output peripheral operation; (5)high impedance 3-state and direct transistor drive peripheral lines; (6)two TTL drive capability on any A and B side buffers.

Diagrams

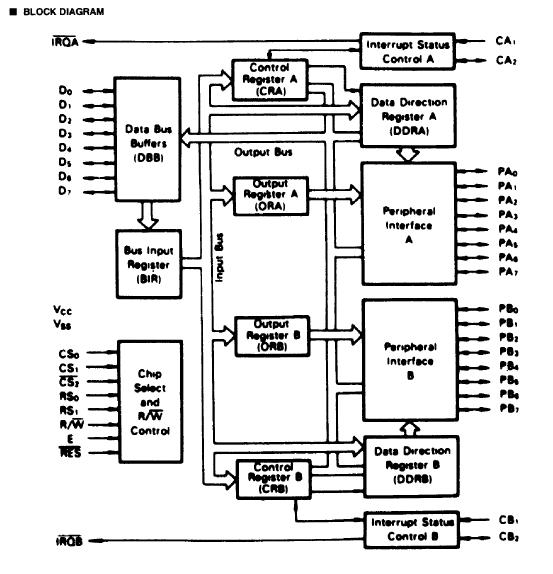

HD63B21FP block diagram
