TDA3629T

light position controller, SOP, -0.3 to +50 V, Low supply current, Low positional error

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.68~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.68~1.20

PartNumber:: TDA3629T

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-10

From Other Seller

Part Number:TDA3629T
US $0.68 - 1.20
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

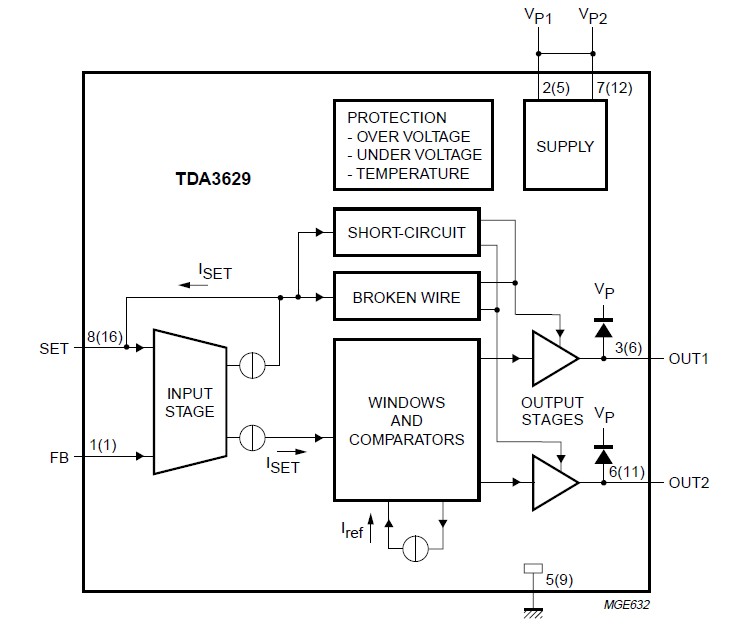

The TDA3629T is a light position controller. It is a monolithic integrated circuit intended to be used in passenger cars. The TDA3629T adapts the elevation of the light beam of the head light of the car to a state defined by the car driver using a potentiometer on the dashboard.

Parametrics

TDA3629T absolute maximum ratings: (1)VP supply voltage: 8 to 18 V at operating; -0.3 to +50 V at non-operating ; (2)Vn voltage on any other pin: -0.3 to VP + 0.3 V; (3)Ves electrostatic handling: -3 to +3 kV; (4)Tstg storage temperature: -55 to +150 ℃; (5)Tamb ambient temperature: -40 to +105 ℃; (6)Tvj virtual junction temperature: -50 to +150 ℃; (7)Vb, tr voltage transients on Vb: -150 to +100 V; (8)RL load resistance: 10 Ω; (9)tblock cumulative blocking time: 100 h.

Features

TDA3629T features: (1)Low positional error; (2)Low noise sensitivity due to hysteresis; (3)Low supply current; (4)Thermally protected; (5)Broken wire and short-circuit indication on SET input; (6)Brake function by short-circuiting the motor; (7)Hysteresis level set externally.
