MPC8548EPXAUJB

Integrated Processor Hardware, BGA, SVDD –0.3 to 1.21 V, Full ECC support

Rated 5 Rating 5 | reviews | Write a review

Price:: US $37.80~70.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $37.80~70.00

PartNumber:: MPC8548EPXAUJB

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: BGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-13

From Other Seller

Part Number:MPC8548EPXAUJB
US $37.80 - 70.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

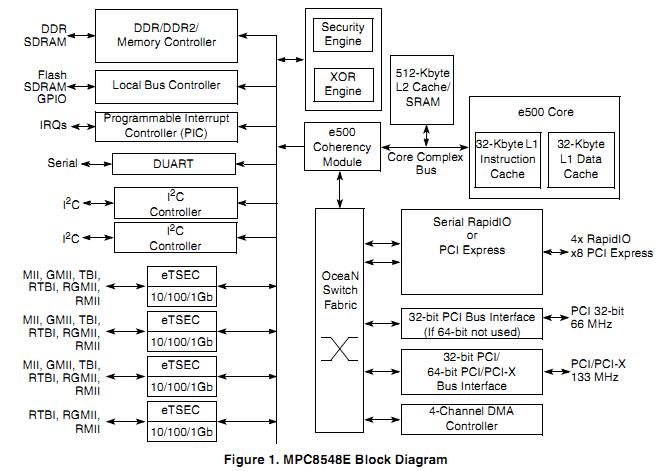

The MPC8548EPXAUJB is an Integrated Processor Hardware.

Parametrics

MPC8548EPXAUJB absolute maximum ratings: (1)Core supply voltage VDD: –0.3 to 1.21 V; (2)PLL supply voltage AVDD: –0.3 to 1.21 V; (3)Core power supply for SerDes transceivers: SVDD –0.3 to 1.21 V; (4)Pad power supply for SerDes transceivers: XVDD –0.3 to 1.21 V; (5)DDR and DDR2 DRAM I/O voltage: GVDD –0.3 to 2.75V; (6)Three-speed Ethernet I/O voltage LVDD (for eTSEC1 and eTSEC2): –0.3 to 3.63 V; (7)TVDD (for eTSEC3 and eTSEC4: –0.3 to 3.63V; (8)PCI/PCI-X, DUART, system control and power management, I2C, Ethernet MII management, and JTAG I/O voltage: OVDD –0.3 to 3.63 V; (9)Local bus I/O voltage: BVDD –0.3 to 3.63V; (10)Input voltage DDR/DDR2 DRAM signals: MVIN –0.3 to (GVDD + 0.3)V; (11)DDR/DDR2 DRAM reference MVREF: –0.3 to (GVDD/2 + 0.3)V.

Features

MPC8548EPXAUJB features: (1)32-Kbyte L1 instruction cache and 32-Kbyte L1 data cache with parity protection. Caches can be locked entirely or on a per-line basis, with separate locking for instructions and data; (2)Signal-processing engine (SPE) APU (auxiliary processing unit). Provides an extensive instruction set for vector (64-bit) integer and fractional operations. These instructions use both the upper and lower words of the 64-bit GPRs as they are defined by the SPE APU; (3)Double-precision floating-point APU. Provides an instruction set for double-precision (64-bit) floating-point instructions that use the 64-bit GPRs; (4)36-bit real addressing; (5)Embedded vector and scalar single-precision floating-point APUs. Provide an instruction set for single-precision (32-bit) floating-point instructions; (6)Memory management unit (MMU). Especially designed for embedded applications. Supports 4-Kbyte to 4-Gbyte page sizes; (7)Enhanced hardware and software debug support; (8)Performance monitor facility that is similar to, but separate from, the MPC8548E performance monitor.
