CY7C64613-128NC

full-speed USB, QFP128, 10 mA, 0.5V to +4.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~28.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~28.00

PartNumber:: CY7C64613-128NC

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-05

From Other Seller

Part Number:CY7C64613-128NC
US $20.00 - 28.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

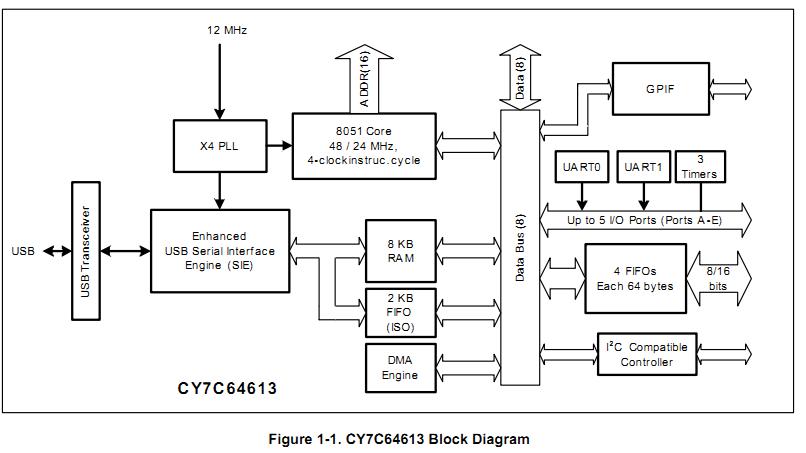

The CY7C64613-128NC is a full-speed USB. It offers higher performance and a higher level of integration than first-generation EZ-USB products. FX builds on the CY7C64613-128NC EZ-USB feature set, including an intelligent USB core, enhanced 8051, 8-Kbyte RAM, and high-performance I/O while maintaining upward code compatibility. The CY7C64613-128NC enhances the EZ-USB family by providing faster operation and more ways to transfer data into and out of the chip at very high speed.

Parametrics

CY7C64613-128NC absolute maximum ratings: (1)Storage Temperature:–65 to +150℃; (2)Ambient Temperature with Power Supplied: 0 to +70℃; (3)Supply Voltage on VCC relative to GND: –0.5V to +4.0V; (4)DC Input Voltage: –0.5V to 5.25V; (5)DC Voltage Applied to Outputs in High Z State:–0.5V to VCC + 0.5V; (6)Power Dissipation: 500 mW; (7)Static Discharge Voltage: > 2 kV; (8)Latch-up Current: > 200 mA; (9)Max Output Sink Current: 10 mA.

Features

CY7C64613-128NC features: (1)Single-chip integrated USB Transceiver, Serial Interface Engine (SIE), and enhanced 8051 microprocessor; (2)Certified compliant with USB Specifications 1.1 and 2.0 (full-speed device); (3)Software operation: 8051 runs code from internal RAM or external RAM. Code can be: Downloaded via USB; Loaded from EEPROM; Executed in-place from external memory (e.g., Flash); (4)Abundant endpoints and buffers: 14 Bulk/Interrupt endpoints, each with a maximum packet size of 64 bytes (per USB specification); 16 Isochronous endpoints, with 2 KB of buffer space (1 KB, double buffered) which may be divided among the 16 isochronous endpoints; One control endpoint (bidirectional); (5)Integrated, industry standard 8051 with enhanced features: Four clocks per instruction cycle; 48-MHz or 24-MHz 8051, selectable by EEPROM configuration bit; Two UARTS (115 K baud); Three counter/timers; Expanded interrupt system; Two data pointers; (6)3.3V operation; (7)Smart SIE.
