Product Summary
The AD8605ARTZ is a single, dual, and quad rail-to-rail input and output, single-supply amplifier. It features very low offset voltage, low input voltage and current noise, and wide signal bandwidth. The AD8605ARTZ uses the Analog Devices, Inc. patented DigiTrim trimming technique, which achieves superior precision without laser trimming. The applications of the AD8605ARTZ include Photodiode amplification, Battery-powered instrumentation, Multipole filters, Sensors, barcode scanners, Audio.
Parametrics
AD8605ARTZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: 6 V; (4)Output Short-Circuit Duration to GND: Observe Derating Curves; (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +125℃; (7)Junction Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 60 sec): 300℃.
Features
AD8605ARTZ features: (1)Low offset voltage: 65 μV maximum; (2)Low input bias currents: 1 pA maximum; (3)Low noise: 8 nV/√Hz; (4)Wide bandwidth: 10 MHZ; (5)High open-loop gain: 1000 V/mV; (6)Unity gain stable; (7)Single-supply operation: 2.7 V to 5.5 V; (8)5-ball WLCSP for single (AD8605) and 8-ball WLCSP for dual (AD8606).

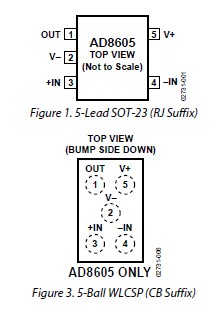

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8605ARTZ-R2 |
|
IC OPAMP GP R-R CMOS LN SOT23-5 |
Data Sheet |
Negotiable |
|
||||||||
|
AD8605ARTZ-REEL |
|
IC OPAMP GP R-R CMOS LN SOT23-5 |
Data Sheet |
|
|
||||||||
|

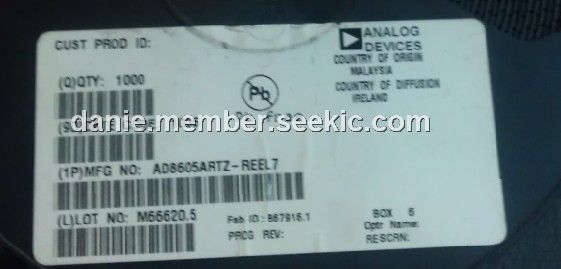

AD8605ARTZ-REEL7 |
|
IC OPAMP GP R-R CMOS LN SOT23-5 |
Data Sheet |
|
|
||||||||
