AAT2805IXN-4.5-T1

dual charge pump, QFN, -0.3 to 6.0 V, Low Noise, No Inductors, 1MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~0.30

PartNumber:: AAT2805IXN-4.5-T1

Brand:: Advanced Analogic Technologies - AnalogicTech | Pack: QFN | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Jemery's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-03

From Other Seller

Part Number:AAT2805IXN-4.5-T1
US $0.15 - 0.30
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

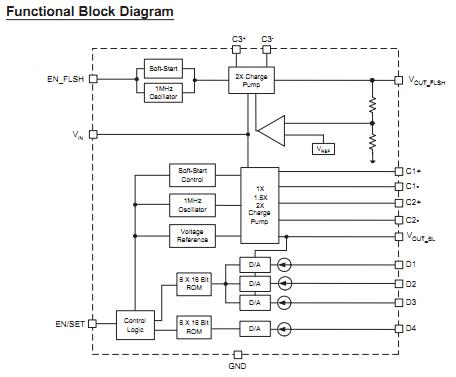

Product Summary

The AAT2805IXN-4.5-T1 is a dual charge pump designed to support both the white LED backlight and flash applications for systems operating with lithium-ion/polymer batteries. The AAT2805IXN-4.5-T1 backlight charge pump is capable of driving up to four LEDs at a total of 120mA. The current sinks may be operated individually or in parallel for driving higher current LEDs. To maximize power efficiency, the charge pump operates in 1X, 1.5X, or 2X mode, where the mode of operation is automatically selected by comparing the forward voltage of each LED with the input voltage. The AAT2805IXN-4.5-T1 is suitable for Color (RGB) Lighting, White LED Backlighting and White LED Photo Flash.

Parametrics

AAT2805IXN-4.5-T1 absolute maximum ratings: (1)VIN, Input Voltage: -0.3 to 6.0 V; (2)VEN/SET; EN_FL, EN/SET; EN_FL to GND Voltage: -0.3 to VIN + 0.3 V; (3)TLEAD, Maximum Soldering Temperature (at leads, 10 sec): 300℃.

Features

AAT2805IXN-4.5-T1 features: (1)VIN Range: 2.7V to 5.5V; (2)Dual Charge Pump to Support Backlight and Flash LEDs; (3)Backlight Charge Pump: Regulated Current; Four Current Sink Inputs; AS2 Cwire Brightness Control; (4)Tri-Mode Charge Pump; (5)Maximum 30mA of Current Per Input; (6)Low IQ (50μA) in Light Load Mode; (7)Flash Charge Pump: Regulated Output Voltage; Up to 250mA of Pulsed Current; (8)Independent Backlight/Flash Control; (9)Low Noise 1MHz Constant Frequency Operation; (10)Automatic Soft-Start; (11)No Inductors; (12)Available in TDFN44-16 Package.
