Product Summary
The XC4VLX100-11FFG1148C is a FPGA.
Parametrics
XC4VLX100-11FFG1148C absolute maximum ratings: (1)VCCINT ,Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage: –0.3 to 3.75 V; (6)VIN, I/O input voltage relative to GND (all user and dedicated I/Os):–0.75 to 4.05 V; (7)VIN, I/O input voltage relative to GND (restricted to maximum of 100 user I/Os):–0.95 to 4.4V; (8)IIN, Current applied to an I/O pin, powered or unpowered: ±100 mA.
Features
XC4VLX100-11FFG1148C features: (1)Xesium Clock Technology; (2)Digital clock manager (DCM) blocks; (3)Additional phase-matched clock dividers (PMCD); (4)Differential global clocks; (5)18 x 18, two complement, signed Multiplier; (6)Optional pipeline stages; (7)Built-in Accumulator (48-bit) and Adder/Subtracter; (8)Smart RAM Memory Hierarchy; (9)Distributed RAM; (10)Dual-port 18-Kbit RAM blocks; (11)Optional pipeline stages; (12)Optional programmable FIFO logic automatically remaps RAM signals as FIFO signals; (13)High-speed memory interface supports DDR and DDR-2 SDRAM, QDR-II, and RLDRAM-II.; (14)SelectIO Technology; (15)1.5V to 3.3V I/O operation; (16)Built-in ChipSync source-synchronous technology; (17)Digitally controlled impedance (DCI) active termination; (18)Fine grained I/O banking (configuration in one bank); (19)Flexible Logic Resources; (20)Secure Chip AES Bitstream Encryption; (21)90-nm Copper CMOS Process; (22)1.2V Core Voltage; (23)Flip-Chip Packaging including Pb-Free Package Choices; (24)RocketIO 622 Mb/s to 6.5 Gb/s Multi-Gigabit Transceiver (MGT) [FX only]; (25)IBM PowerPC RISC Processor Core [FX only]; (26)PowerPC 405 (PPC405) Core; (27)Auxiliary Processor Unit Interface (User Coprocessor).

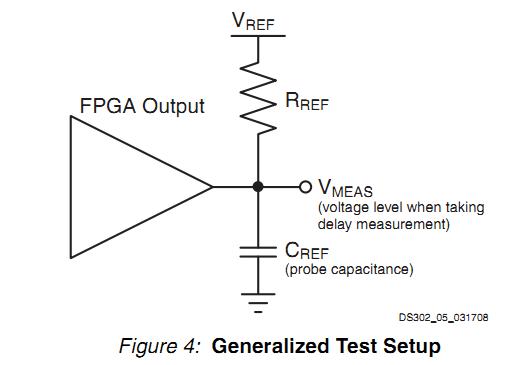

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC4VLX100-11FFG1148C |
|
IC FPGA VIRTEX-4LX 100K 1148FBGA |
Data Sheet |
|
|
||||||
