Product Summary
The UPD78P064GF is a 8-bit single-chip microcontroller.
Parametrics
UPD78P064GF abolute maximum ratings: (1)supply voltage, VDD: -0.3 to 7.0V; VPP: -0.3 to 13.5V; AVDD: -0.3 to VDD+0.3V; AVREF: -0.3 to VDD+0.3V; AVSS: -0.3 to 0.3V; (2)input voltage, VI: -0.3 to VDD+0.3V; VI2: -0.3 to VDD+0.3V; (3)output voltage, VO: -0.3 to VDD+0.3V; (4)analog input voltage, VAN: AVSS-0.3 to AVREF+0.3V; (5)output current, high, IOH: -10mA; -15mA; (6)output current, IOL: 30mA; (7)operating ambient temperature, TA: -40 to 85℃; (8)storage temperature, Tstg: -65 to 150℃.
Features
UPD78P064GF features: (1)pin compatible with mask ROM products; (2)internal PROM: 32K bytes; (3)internal high speed RAM: 1024 bytes; (4)LCD display RAM: 40×4 bits; (5)operable in the same supply voltage as mask ROM products; (6)corresponding to QTOP microcontrollers.

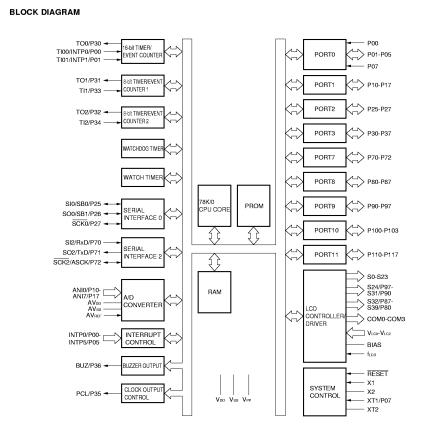

Diagrams
 |
